Docker containers

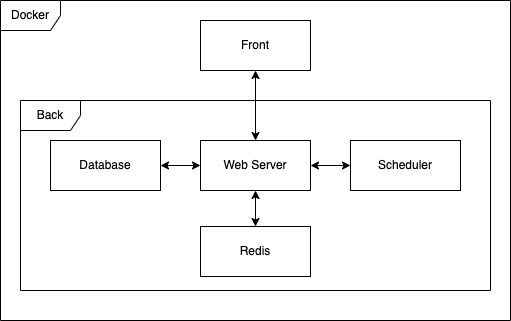

This application is divided into docker containers. Theses containers are used to build images for the production environment. Here is a schema of the structure:
Front
The front (front folder) is made with Vue3. The components of the pages are in front/src/components and the services for managing the requests are in front/src/services.
In production environment, the front app is available at https://localhost. In development environment, the front app is available at https://localhost:8081.
Dependencies
- vue 3
- vite
- axios
- chokidar
- gridjs
- jsonwebtoken
More details can be found in the front/package.json file.
Back
The api container contains the web server (passiveDNS folder), with models for interaction between the database the requests and controllers (apiv2 folder) for interacting with the front.
The documentation for the apiv2 requests/responses can be found at https://localhost:8080/docs when the api container is running.
Dependencies
- python 3.12
- fastapi
- pydantic
More details can be found in the pyproject.toml file.
Database
The database container runs the arangoDB local database. By default, the database is available at https://localhost:8529, using username and password setup during the installation.
For more details on the structure of the database, please visit the database section.
Scheduler
The scheduler is run on an external container so that it is independant and can be run from other places for instance. It relies on Redis which is run automatically with it.
The scheduler is programmed to resolve every domain name once a day, check if there have been any changes and notify people using the channels if so.
Dependencies
- python 3.12
- celery
Redis
Redis is used only by the scheduler, and is linked to it. For more information about Redis, visit their website.
